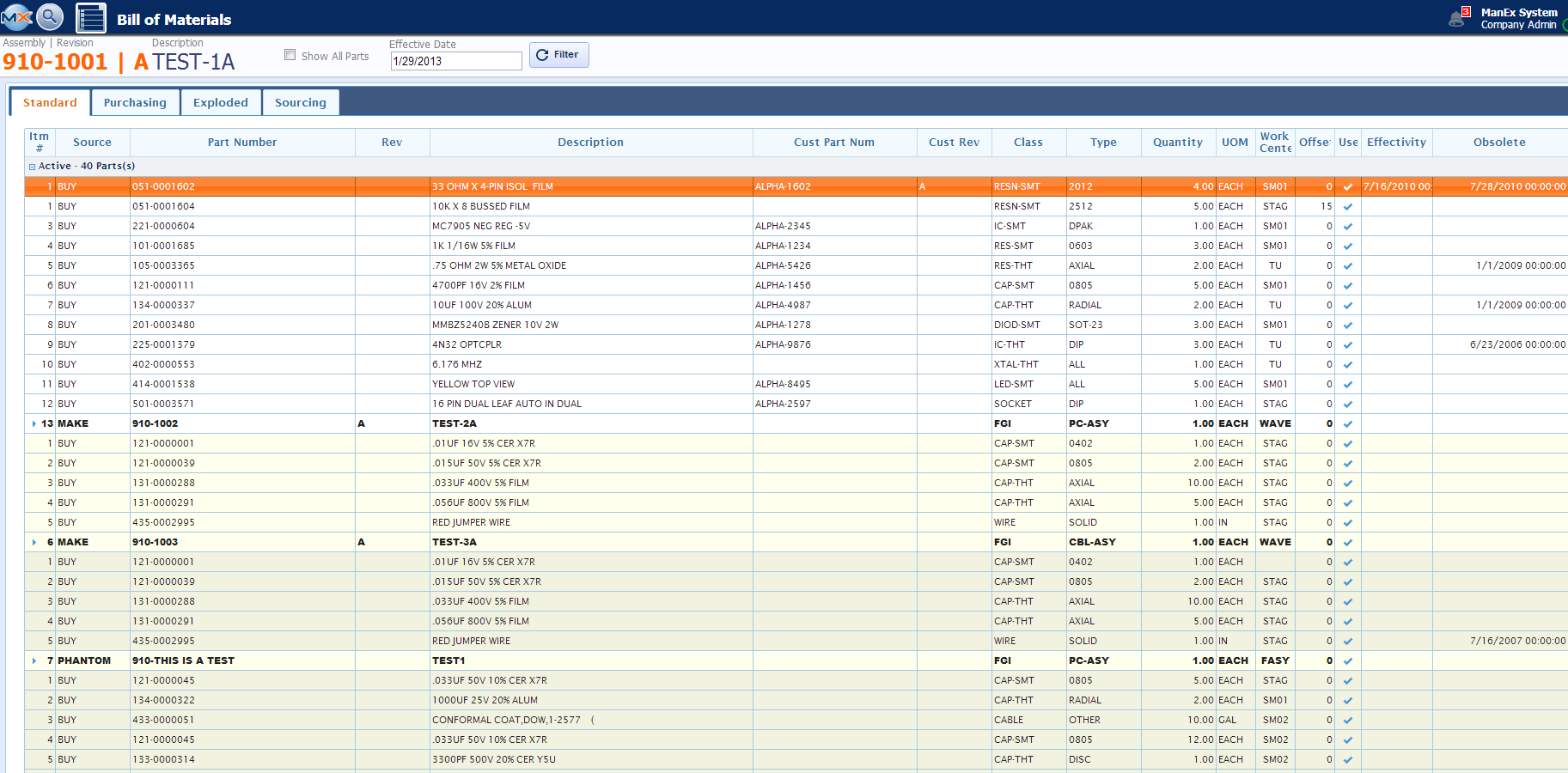

Bill of Material - Standard
| Itm# | The item number assigned to the components in the BOM. |
| Part Number | The components' internal part number. |
| Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Source | The sources of the assembly components. Make, Buy, Consigned, or Phantom can be selected. |
| Description | The Item Master description of the component part. |
| Cust Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Class | The Part Class of the component part as assigned in the Item Master |
| Type | The Part Type of the component part as assigned in the Item Master. |
| Quantity | The quantity of the component part used in the assembly. This quantity does not compensate for setup and run losses. The "Setup %" and "Run Qty" fields in the Item Master screen cover production losses. |
| UOM | The stocking/kitting unit of measure for the part. |
| Work Center | The work center identified in the routing for the assembly at which the part is needed. Kitting of the part by work center will use this information to determine which parts are to be kitted for each work center. |
| Offset | Production offset is a BoM item level field that allows users to control delivery dates in relation to the starting date of the work order. By using this field, the user may move the material requirement date by the specified number of days in either direction. |
| Used | Identifies the part as requiring kitting from the storeroom. Typical non-kitted items include chemicals and adhesives that are reissued when they run low but are included on the BOM for costing or reference. |
| Effectively | This is the date that the part is added and/or removed from the BOM and the demands will be displayed in MRP. MRP picks up all the records with an effective date earlier or equal to current date, and all NULL/BLANK effective dates. |
| Obsolete | The date the part is no longer required on the BOM for new work orders. The demands will not be displayed in MRP. |

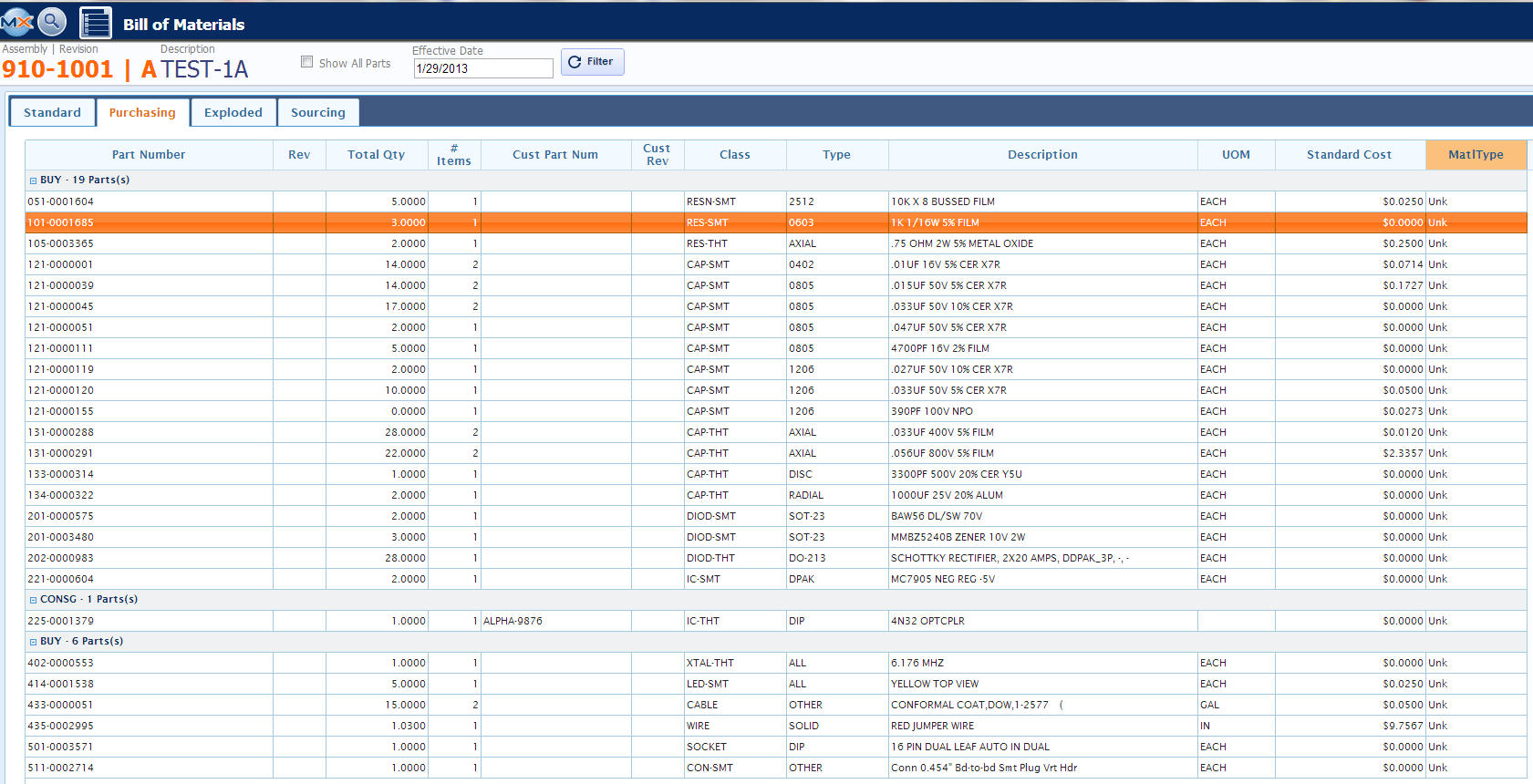

Bill of Material - Purchasing
| Part Number | The components internal part number. |
| Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Total Qty | The quantity of the component part used in the assembly. This qty does NOT compensate for setup and run losses. The "Setup %" and "Run Qty" fields in the Item Master screen cover production losses. |
| # Items | The item number assigned to the components in the BOM . |
| Cust Part Num | The number the customer uses to identify the part. |
| Cust Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Class | The part class of the component part as assigned in the Item Master. |
| Type | The part type of the component part as assigned in the Item Master. |
| Description | The Item Master description of the component part |
| UOM | The stocking/kitting unit of measure for the part. |
| Standard Cost | The Standard Cost of an item is a calculated value determined by the sum of individual costs. These individual costs may be in any combination of the material, labor, overhead, other, and/or user-defined costs. |
| MatlType | The AVL material type code. LF, LF-Date, LF-Mark, LF-P/N, RoHS, RoHS-Date, RoHS-Mark, RoHS-P/N, and Unk are the AVL Material types that are hard-coded into the system. LF (Lead-Free), RoHS (the restriction of the use of certain hazardous substances in electrical and electronic equipment). In general, RoHS requirements include limitations on other heavy metals in addition to being lead free. Many companies may not meet the full requirements of RoHS, but may still wish to identify the material as lead-free. Unk (Unknown) is another Inventory material type that is hard-coded into the system. Sometimes the user wishes to identify a date code, marking, or part number which designates that the part has switched from unknown to LF or RoHS, and that is what the additional modifier is for. |

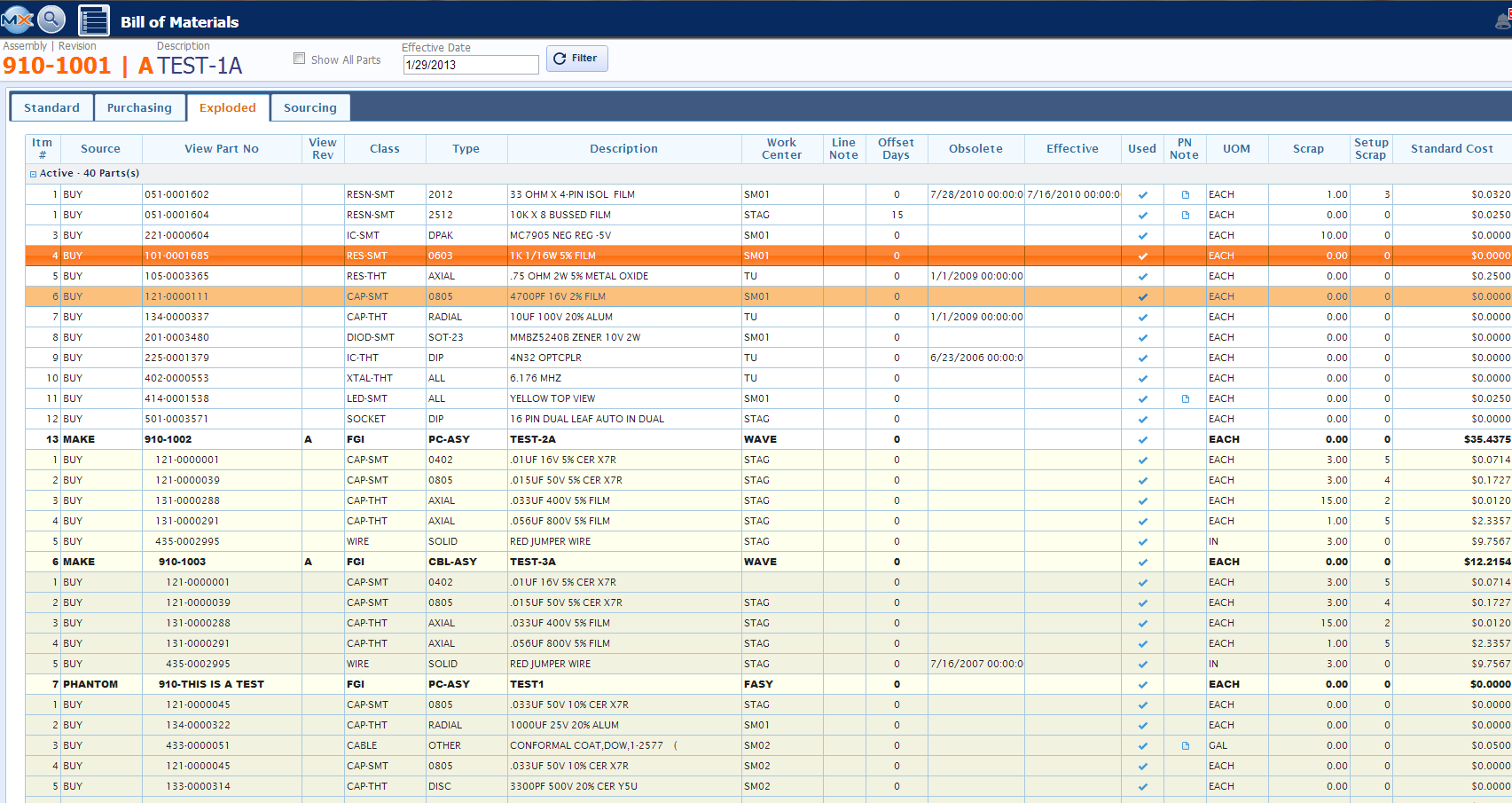

Bill of Material - Exploded
| Itm # | The item numbers assigned to the components in the BOM |
| Source | The sources of the assembly components. Make, Buy, Consigned, or Phantom can be selected. |
| View Part No | The components' internal manex part number. Depressing this button will display BOM Details, Item Master Custom Fields, AVL Configurations, and Ref Designators for the selected part. |
| View Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Class | The part class of the component part as assigned in the Item Master. |
| Type | The part type of the component part as assigned in the Item Master. |
| Description | The Item Master description of the component part. |
| Work Center | The work center identified in the routing for the assembly at which the part is needed. Kitting of the part by work center will use this information to determine which parts are to be kitted for each work center. |
| Offset Days | Production offset is a BOM item level field that allows users to control delivery dates in relation to the starting date of the work order. By using this field, the user may move the material requirement date by the specified number of days in either direction. |
| Obsolete | The date the part is no longer required on the BOM for new work orders and the demands will NOT be displayed in MRP |
| Effective | This is the date that the part is added and/or removed from the BOM and the demands will be displayed in MRP. MRP picks up all the records with an effective date earlier or equal to the current date, and all NULL/BLANK effective dates |
| Used | Identifies the part as requiring kitting from the storeroom. Typical non-kitted items include chemicals and adhesives that are re-issued when they run low but are included on the BOM for costing or reference. |
| PN Note | Depressing this button will display BOM Details, Item Master Custom Fields, AVL Configurations, and Ref Designators for the selected part. |
| UOM | The stocking/kitting unit of measure for the part. |
| Scrap | This amount is added to the exact quantity used on an assembly to provide an overage to cover losses during running due to predictable machine and human losses. |
| Setup Scrap | Setup losses may be added to the BOM requirement and Run Scrap for an item. For instance, an auto-insertion machine may use extra parts for alignment checks. |
| Standard Cost | The Standard Cost of an item is a calculated value determined by the sum of individual costs. These individual costs may be in any combination of the material, labor, overhead, other, and/or user-defined costs. |

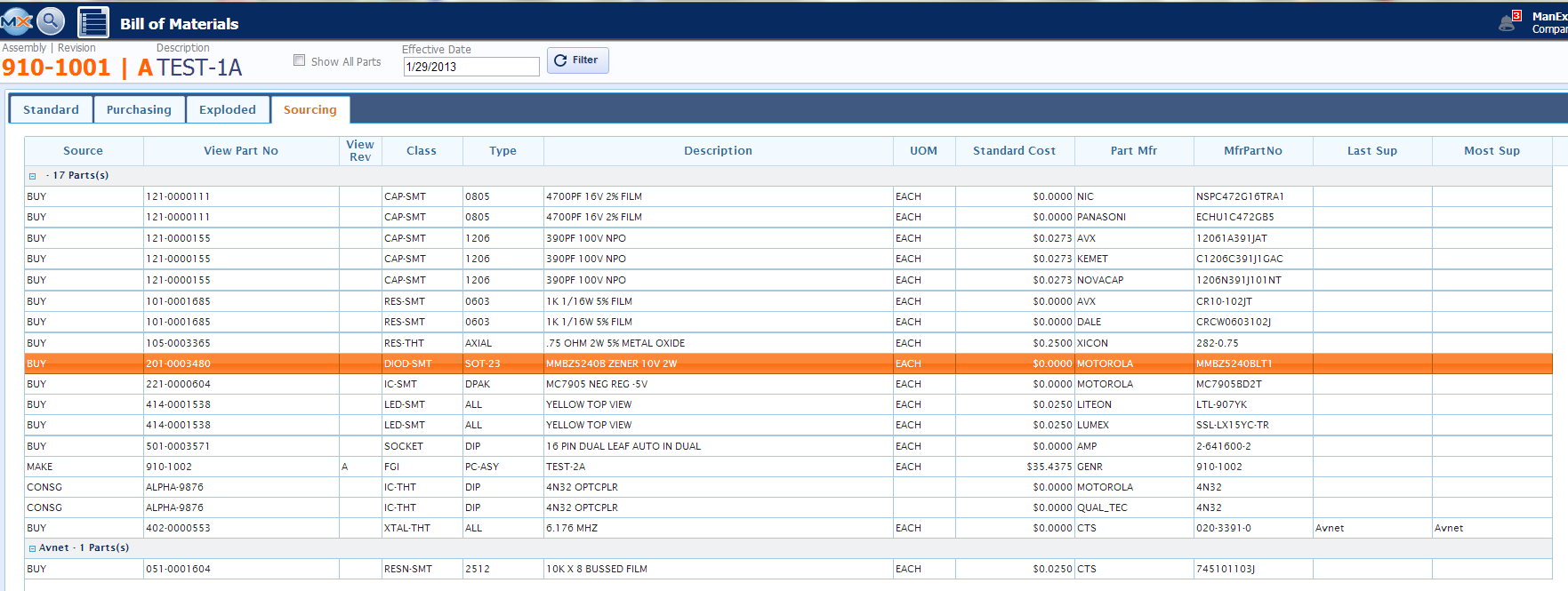

Bill of Material - Sourcing
| Source | The sources of the assembly components. Make, Buy, Consigned, or Phantom can be selected. |
| View Part No | The components' internal manex part number. Depressing this button will display BOM Details, Item Master Custom Fields, AVL Configurations, and Ref Designators for the selected part. |
| View Rev | The part number revision for the component. A component may exist under multiple revisions. Each revision is considered a unique part number and may co-exist with or replace other revisions. |
| Class | The part class of the component part as assigned in the Item Master. |
| Type | The part type of the component part as assigned in the Item Master. |
| Description | The Item Master description of the component part. |
| UOM | The stocking/kitting unit of measure for the part. |
| Standard Cost | The Standard Cost of an item is a calculated value determined by the sum of individual costs. These individual costs may be in any combination of the material, labor, overhead, other, and/or user-defined costs. |
| Part Mfr | The name of the manufacturer of this part. |
| MfrPartNo | Displays the manufacturer part number for an existing highlighted manufacturer. |
| Last Sup | Last Supplier used. |
| Most Sup | Supplier Most Used. |
