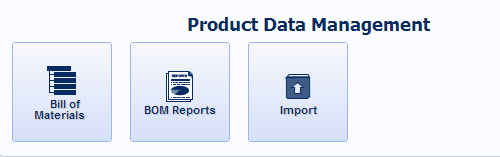

Login to manexCloud and select the "Bill of Materials" icon under the "Product Data Management" header.

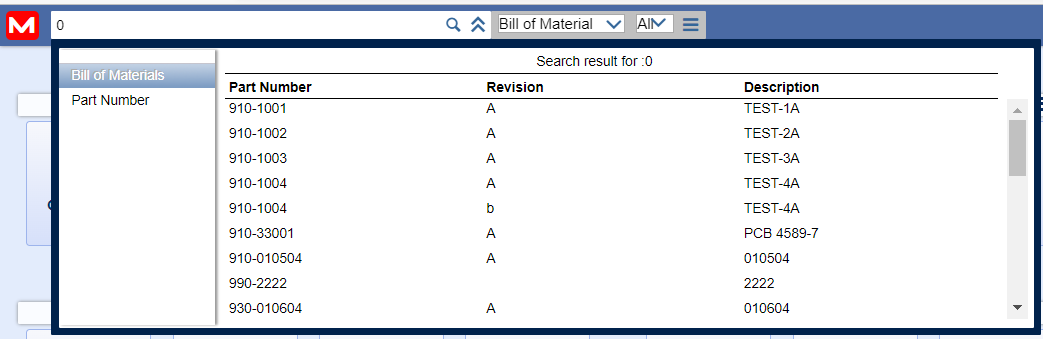

This will direct you to the search bar. Enter your search terms and either press enter or click the magnifying glass to bring up the search results. A listing of part numbers will be displayed:

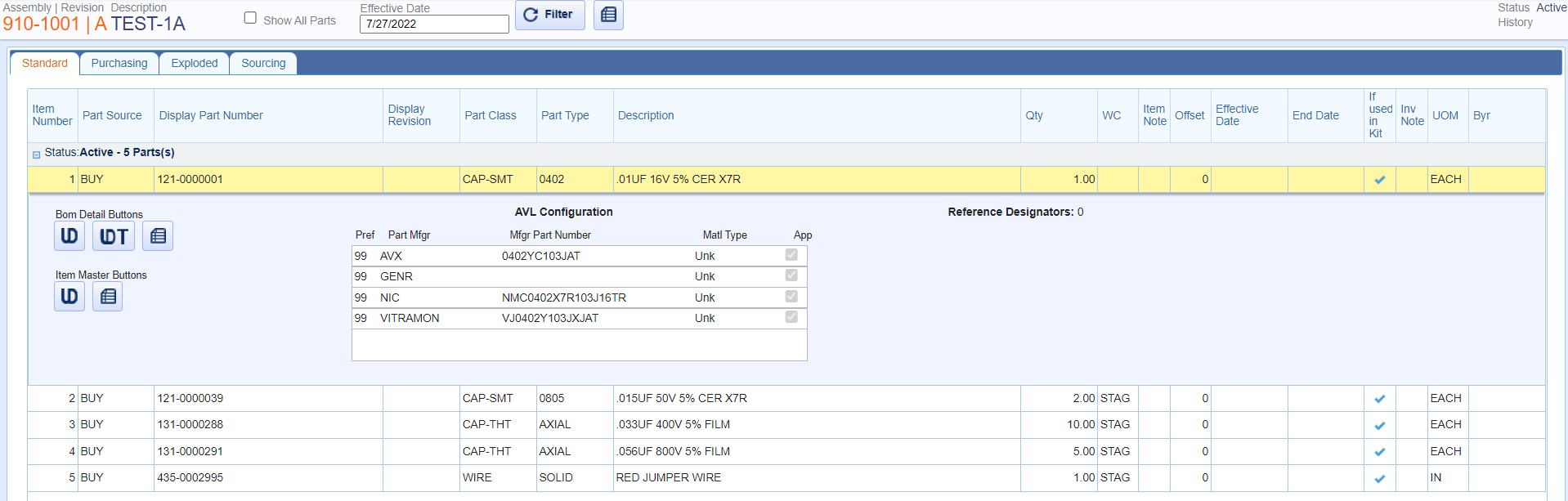

Double-click on a part number and the Bill of Material for the part will be displayed. This screen will display all active BUY, CONSIGNED, MAKE, and PHANTOM parts.

The user may see more detail per part by clicking on the row for the details you would like to see. The details will be added below the row. Clicking on the row again to close/hide the details.



There are four tabs available. Each tab will display different information for the items listed in this Bill of Material.

Standard Tab: This tab will display all the active parts for this BOM, the item number, source, part number, revision, description, customer part number, reg., class, type, quantity per assembly, UOM, work centers, offset days (if applicable), if used in kit, effectively, and obsolete dates.

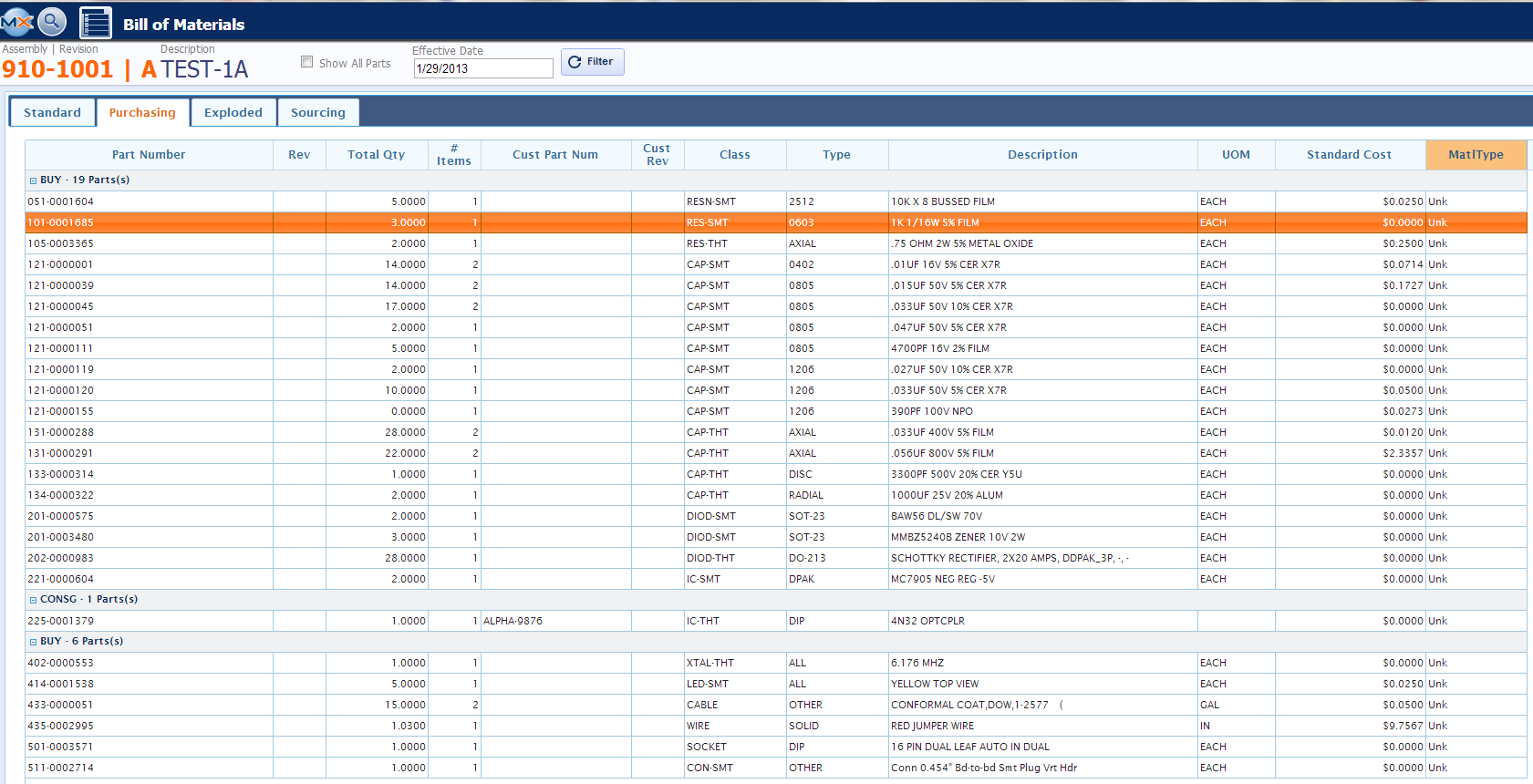

Purchasing Tab: This tab displays the BUY and CONSIGNED parts listed on the BOM, part number, total quantity per assembly, item number, customer part number (if applicable), class, type, description, UOM, standard cost, and material type.

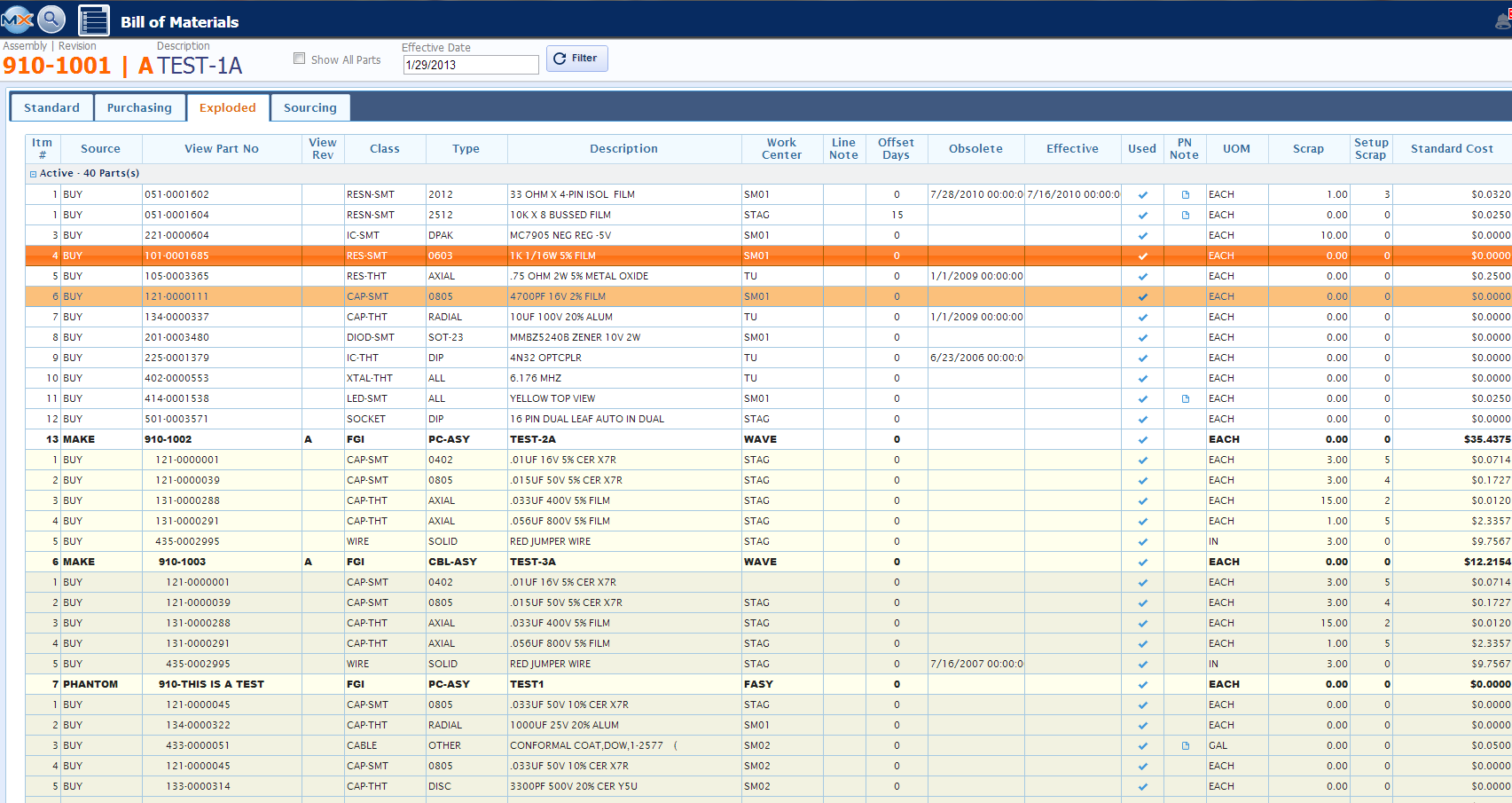

Exploded Tab: This tab will expand out any sub-assemblies, MAKE, or PHANTOM assemblies listed on the original BOM, along with the part numbers, class, type, description, work center, line notes, offset days, obsolete and  effective dates, used on BOM, PN Notes, UOM, scrap, setup scrap, and standard cost.

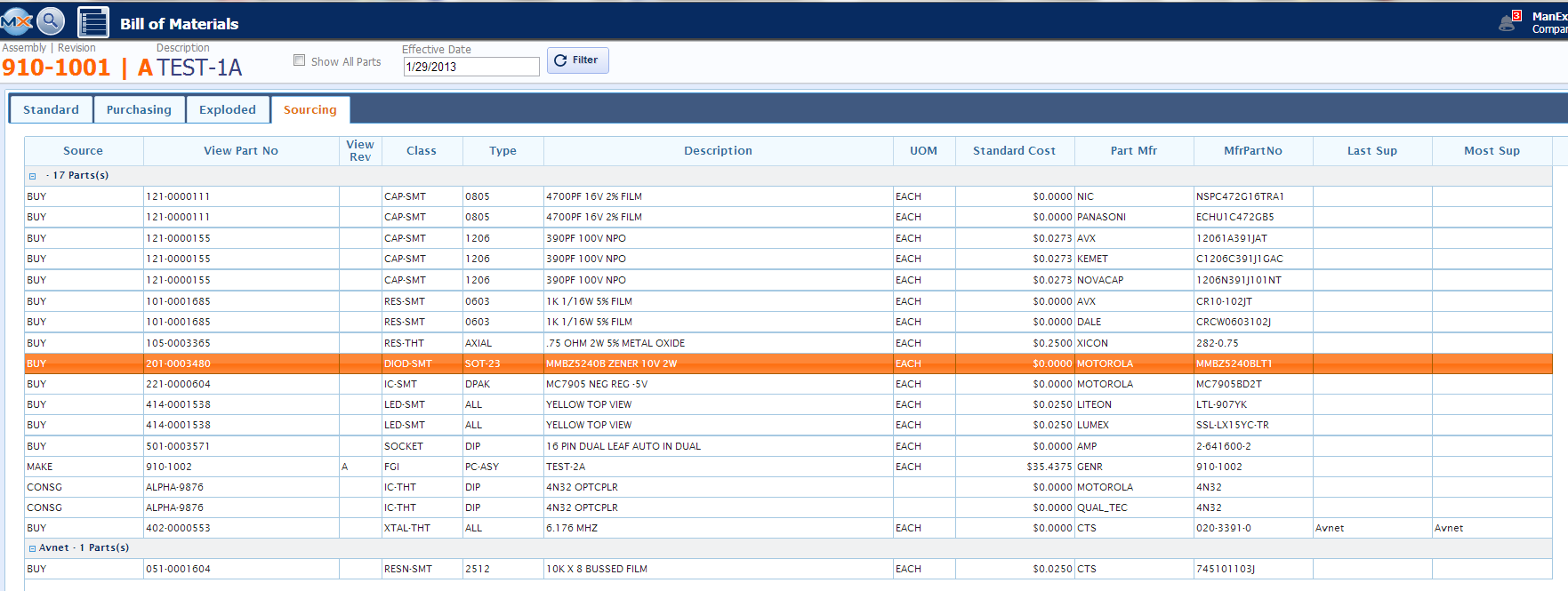

Sourcing Tab:  This tab will display the BUY and CONSIGNED parts or parts that will be sourced out to suppliers.  This tab will list the source, part number, class, type, description, UOM, standard cost, part manufacturer, manufcaturer part number, last supplier used, and supplier most used.



If the user would like to view more detail for a specific part (such as the AVL information or reference designators) on any of these tabs, or to add any BOM or Item Master detail:

  1. Click on the row for the details you want to see. The details will be added below the row.
  2. Click on the row again to close/hide the details.

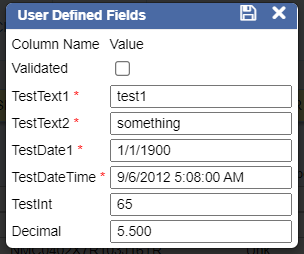

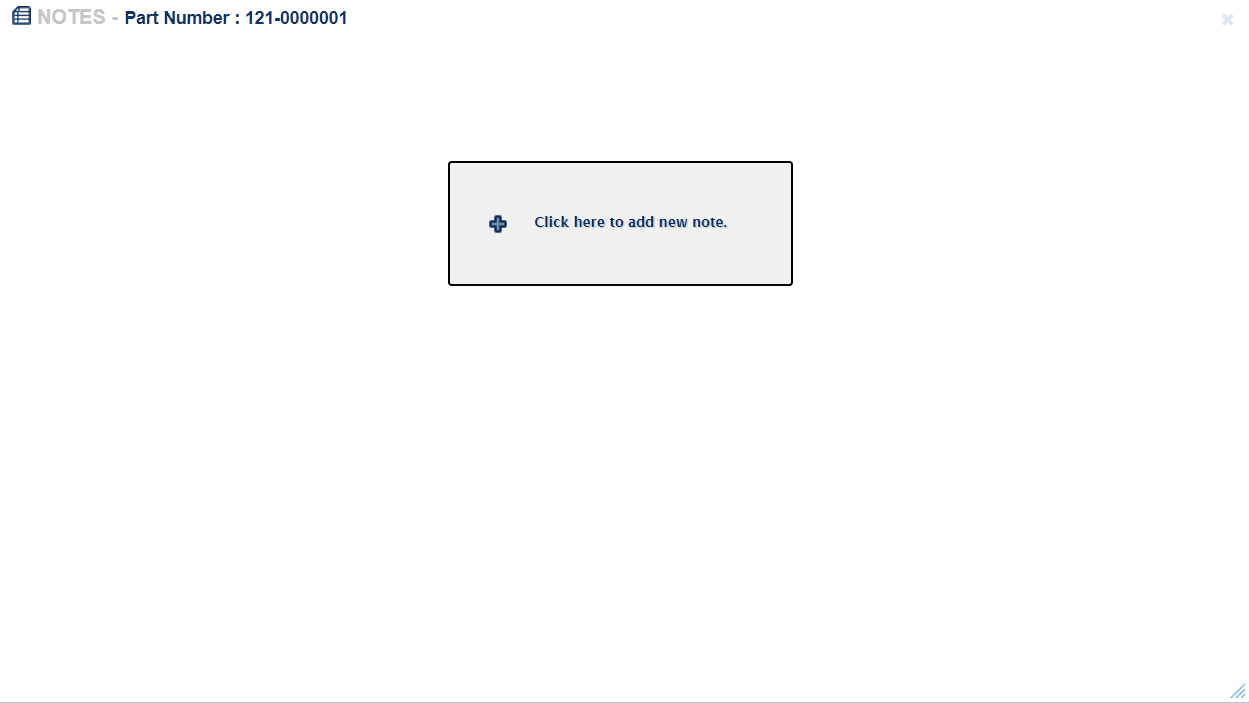

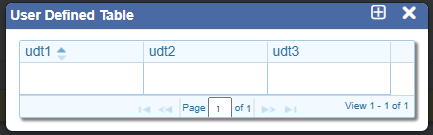

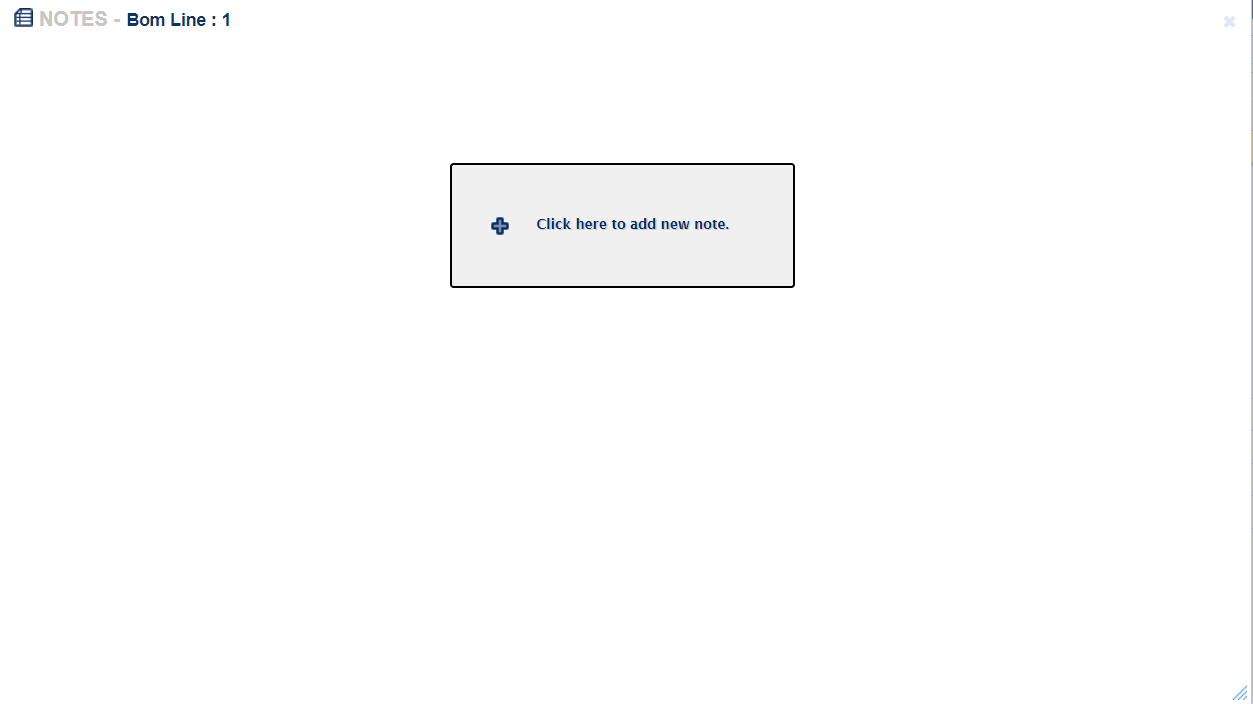

Pressing the BOM Detail buttons will bring up the following screens:

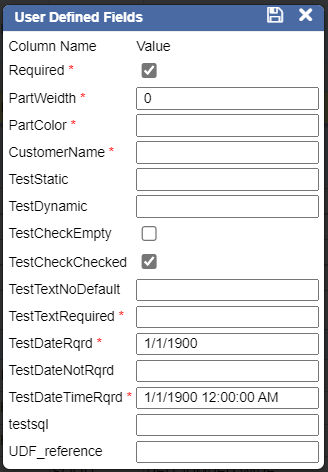

Pressing the Item Master buttons will display the following screens:






All standard grid customizations apply.
