How To Launch ManexCloud From the Desktop Shop Floor Tracking by Work Order Module

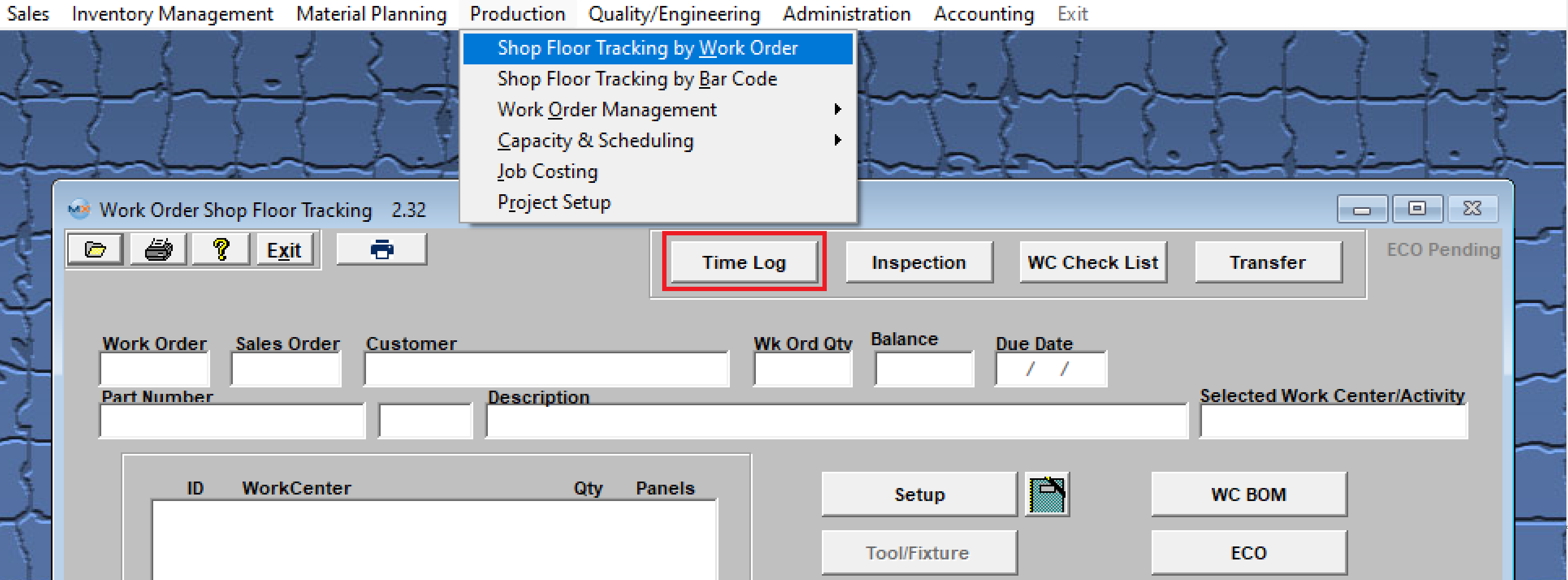

1. Navigate to the Production section, and select the Shop Floor Tracking by Work Order module.

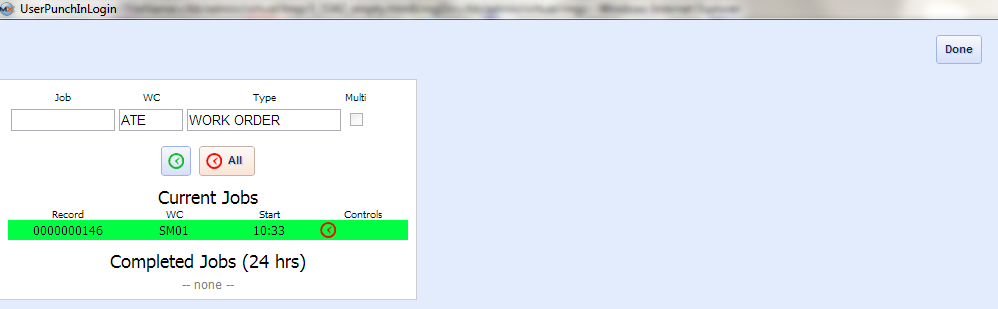

2. A new window should open on the relevant workstation (see the below image).




Note: Consider the following details when using the Time Log module:

  • If the work order (WO) was already open in the desktop Shop Floor module, then the WO should default to the Job field. The Job field needs to be populated if the Type field is set to "Job in Job Out" or "WO In WO out."
  • If logging into record daily hours not specific to any WO (job), then you do not have to populate the Job field.
  • The WC (work center) field always needs to be populated in order to record the time.
  • For daily hours not specific to a job, it does not matter which WC is chosen.
  • For actual jobs, you'll want to track your time in a specific WC.
  • If logging into multiple WOs at the same time, be sure the multi-check box is enabled for every login.
  • Once filled out, click on the green time clock button to log the time. The red time clock button can be used to log out of all jobs that you are currently logged into.





Manual Launch from Browser

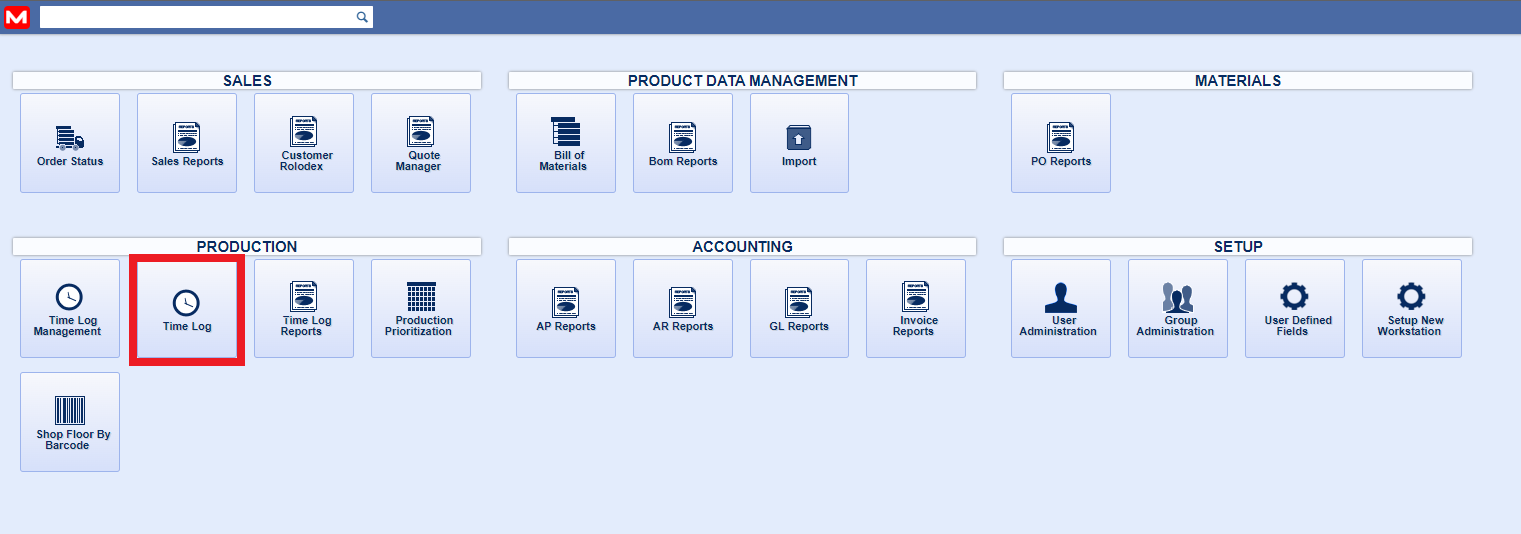

1. If logging in manually from a browser, and not the desktop, locate the Production section, and there you will find the Time Log module:

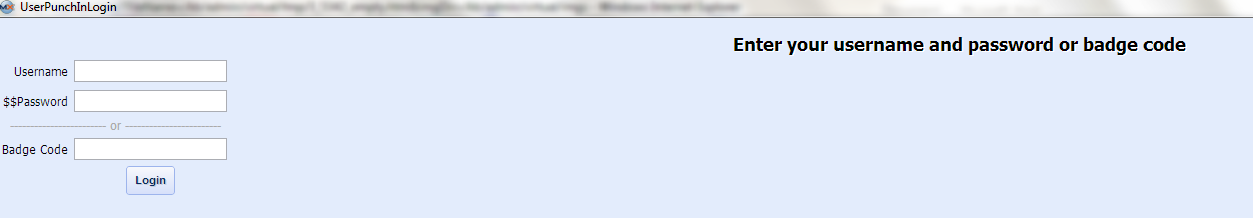

2. Select the Time Log module and the following login screen will be displayed:





3. You'll have two options for logging in: (a) username and password, or (b) badge code. Once your information is entered, you must depress the "Login" button and the following screen will be displayed.


Note: Consider the following details when using the Time Log module:

  • The Job field needs to be populated if the Type field is set to "Job in Job Out" or "WO In WO out."
  • If logging in just to record daily hours not specific to any WO (job), then you do not have to populate the Job field.
  • The WC (Work Center) field needs to be populated in order to record the time.
  • For daily hours, not specific to a Job, it does not matter which WC is chosen.
  • For actual jobs, you'll want to track time in a specific WC.
  • If logging into multiple WOs at the same time, you'll need to make sure that the multi-check box is enabled for every login.
  • Once filled out, click the green Time Clock button to log the time. The red Time Clock button can be used to log out of all jobs you are currently logged into
