Product Prioritization Main Screen
Note:
- Use the full calendar for the calendar controls.
- The month view will display the work order count and capacity color.
- Use drag-and-drop scheduling to adjust the start date.
- The screen refreshes the list of work centers every 30 seconds (if the screen is not in use).
Fields and Definitions
| 1 | Customer Selection | Select "All" or a specific customer from the pull-down and the calendar data will update accordingly. |
| 2 | Work Center Selection | Select "All" or a specific Work Center from the pull-down and the calendar data will update accordingly. |
| 3 | Work Order Accordion | Grouped records of Work Order; Backward Scheduled is auto-scheduled. Manual Scheduled is user adjusted Behind - "Due Date" and "Complete Date" have not passed, but a WC should have been completed by now but has not. Late by Due Date - the WO due date has passed and the job is not finished. Late by Sch Date - the scheduled complete date has passed and the job is not finished; Released - kit released is true; Open - All open WO. |
| 4 | Accordion Details | The group header displays the title and record count. The record displays the WO number and part number/Rev. |
| 5 | Day Details Color | Green - indicates that all the WCs for that date are under capacity. The count shows the total WOs in production for that date (see the image below). Orange - indicates at least one WC is nearing the capacity limit and no WC is over the capacity (see the image below). Red - indicates at least one WC is over capacity (see the image below). White - indicates that nothing is scheduled for that date (see the image below). Grey - indicates a non-working date (see the image below). |
| 6 | Calendar Data | |
| 7 | Record Selected Details | Click once to expand and see the details, and click again to revert to the calendar view and hide the details. |
| 8 | Category View | If no records belong to the group, a "0" will be displayed. |

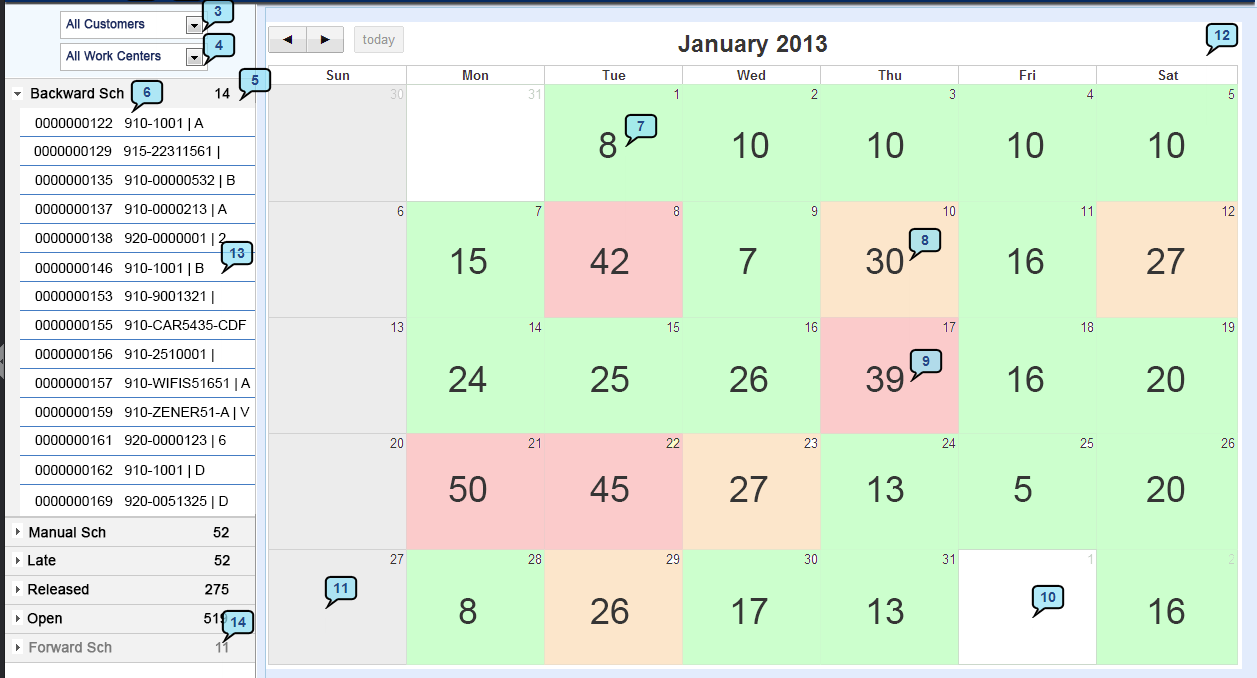

Production Prioritization Example
