Enter into SQLSYSSETTING.EXE within the manexSQL root directory. Enter password when prompted. |  |

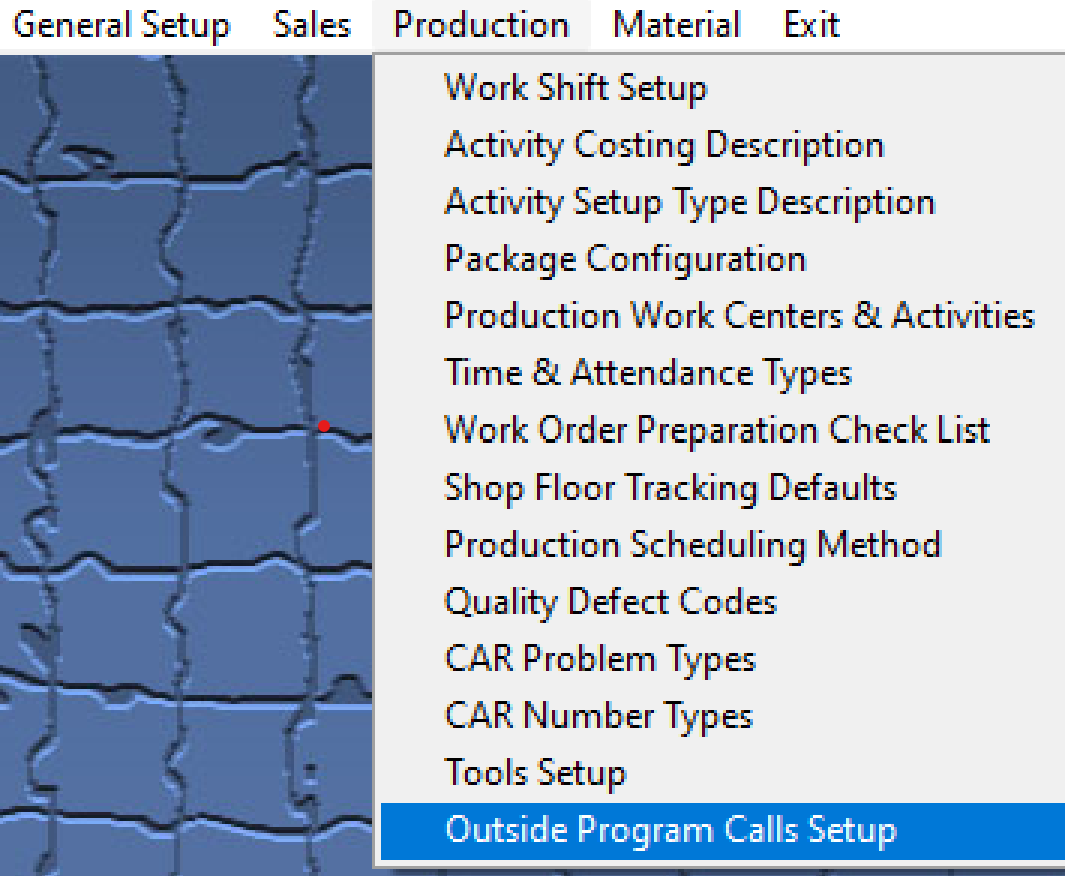

Select Production > Outside Program Calls Setup from the menu. |  |

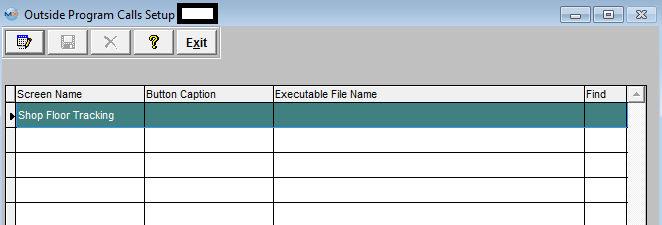

The following screen will be displayed:
The system automatically enters the screen name as Shop Floor Tracking.

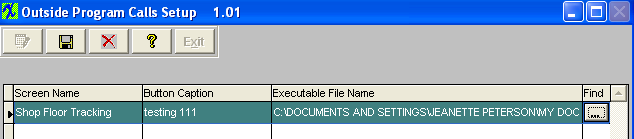

Next, select the Edit button from the main toolbar to enter a caption you want to appear in the Shop Floor Tracking module, then enter in the executable file name.
If you don’t know the executable file name, double click the find column.

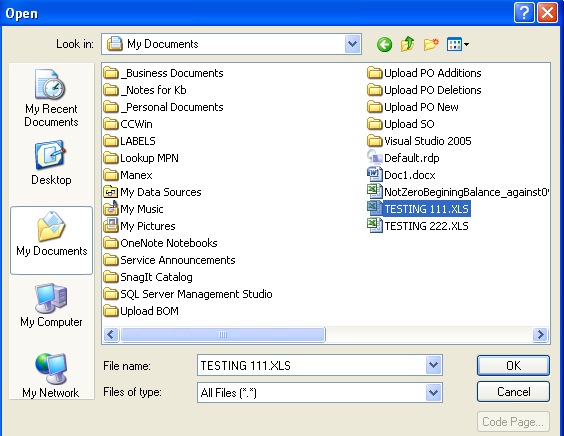

The following window will appear:
Select the correct directory.
Highlight the file name, and the file name will appear in the field titled, "File name field."
Depress the "OK" button and the exe. file name will default into the Outside Program Calls Setup screen
Next, The user must select the Save or Abandon changes button from the main toolbar after entering the Edit mode.

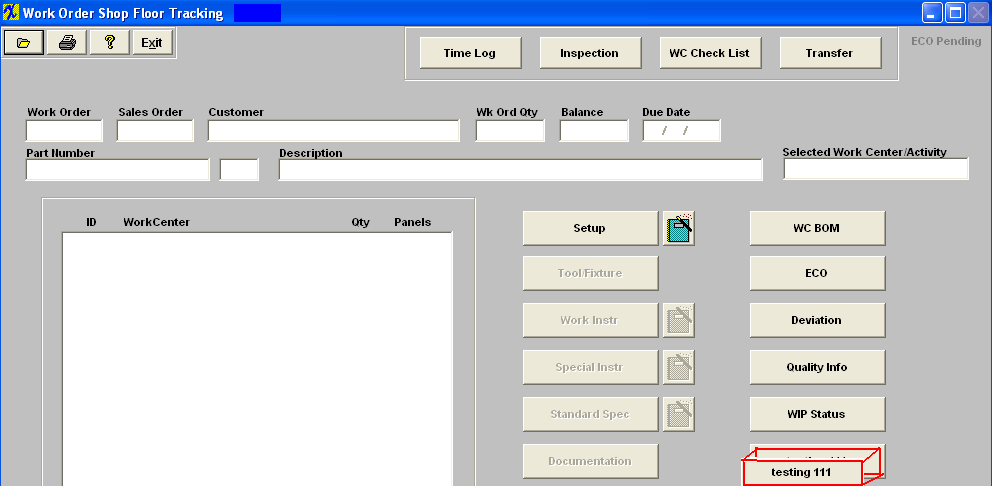

If the user saves the changes, then a button will be created in Shop Floor Tracking with the button caption name entered in the setup screen:

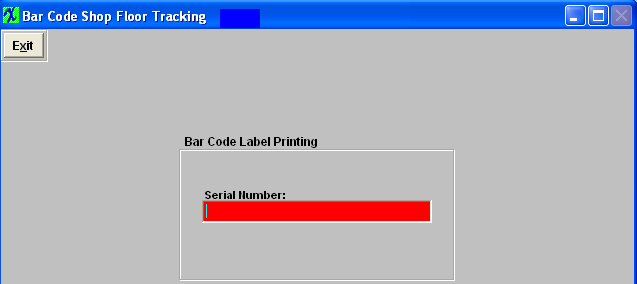

When user depresses this button, the screen below will appear and they will need to enter a serial number. The program will then gather all the part number(s) and work order information into a text file, and the user defined program will use the text file to print a label.
Where Used: in the Shop Floor Tracking module.
